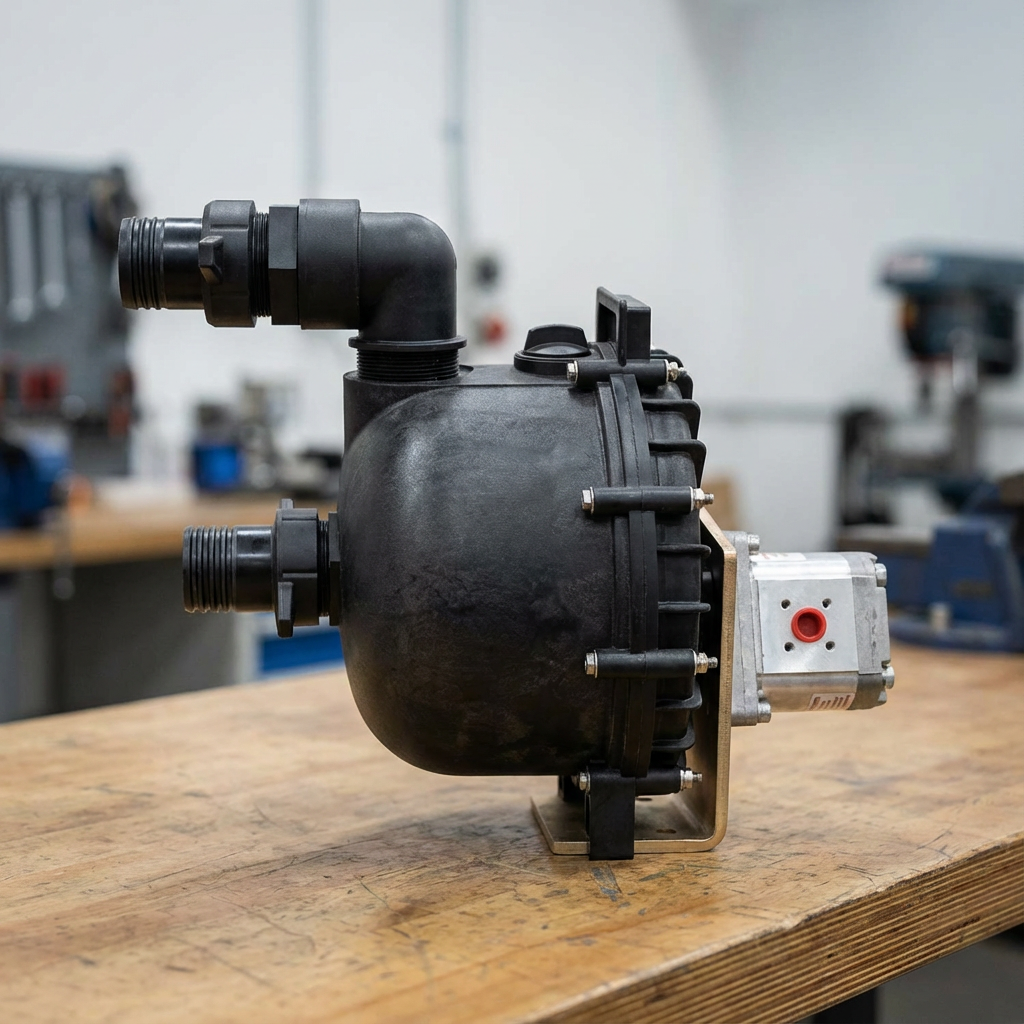

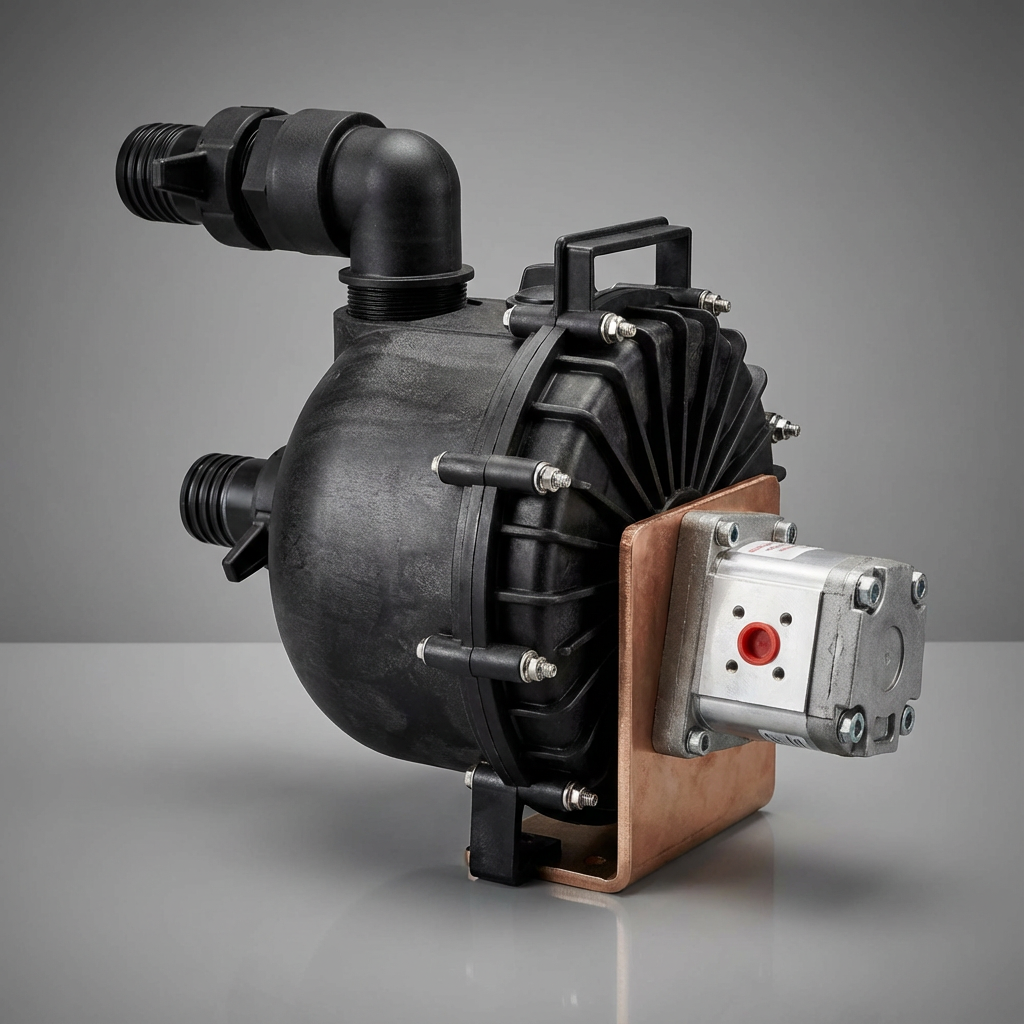

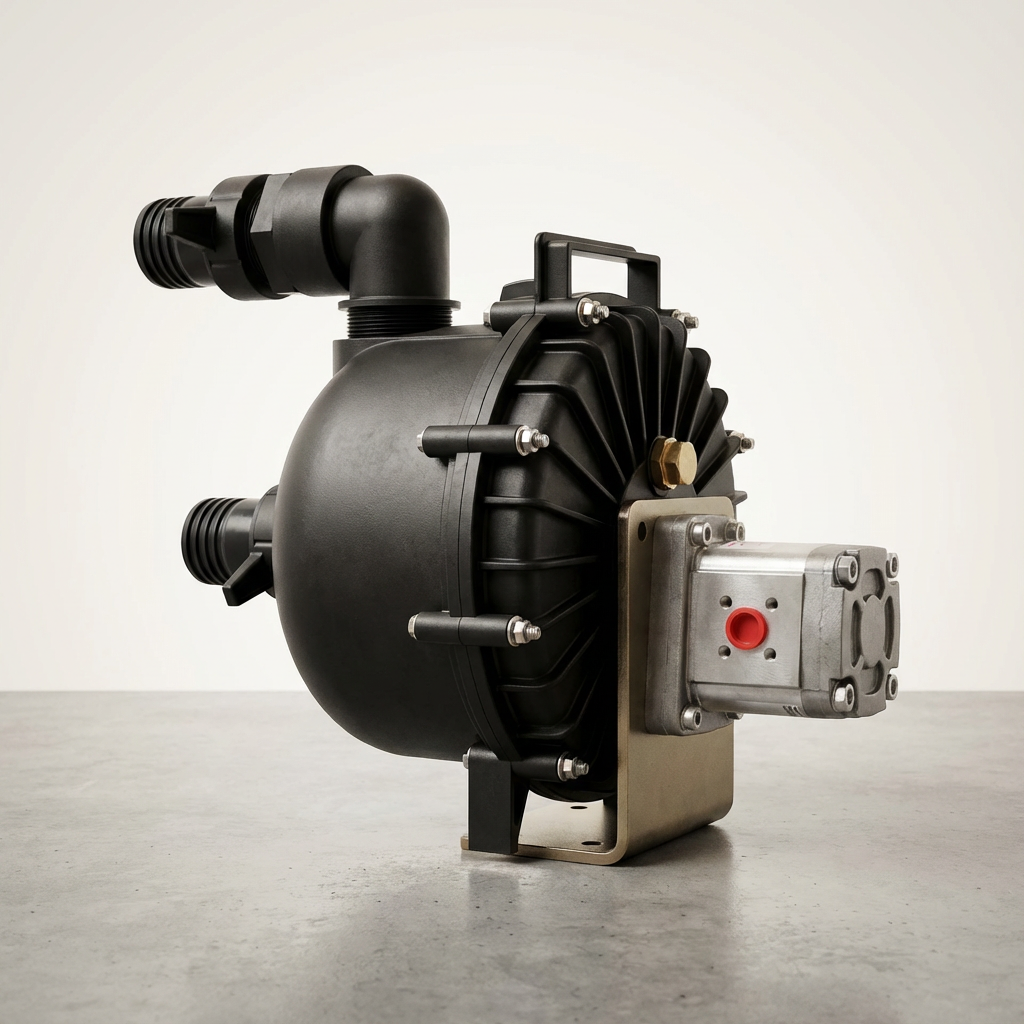

Chemical Hydraulic Drive Pump

Introducing our new hydraulic driven chemical pump, designed for safe, efficient, and reliable chemical transfer in agricultural and industrial applications. Built with advanced materials and a compact design, this pump is the perfect solution for handling corrosive fluids with confidence.

Specifications

Material: Carbon‑ceramic body with PA66 plastic impeller (resistant to erosion)
Weight: Only 3.5 kg – lightweight and portable
Speed: 3600 rpm working speed
Suction Lift: 8 m
Drive: Hydraulic motor system

Category: Hydraulic Driven Chemical & Water Transferring Pumps

Request a quote Download spec sheet

Key Features & Benefits

Corrosion Resistance – PA66 plastic impeller ensures durability when pumping chemicals.
Compact & Lightweight – Easy to transport and mount anywhere.
Hydraulic Driven Reliability – No PTO shaft or petrol engine required, reducing risk of breakdowns.
Quick Installation – Simply couple hydraulic hoses to tractor hydraulics and shift lever to operate.
Versatility – Can be switched easily between tractors or mounted on trucks and trailers.
Proven Reliability – Hydraulic drive motor ensures consistent performance in demanding environments.
Safety First – Eliminates PTO shaft accident risks and engine start failures.

700 L/min @ 7.5 bar

(minimum)

Hydraulic Flow Rate

57 L/min @ 150 bar

Hydraulic Compatibility

Ideal for tractors with hydraulic oil flow rates of 60–100 L/min

Safe Operating Pressure

Do not exceed 15 bar to prevent hose damage

OVERVIEW

Progressive Chemical and Industrial Hydraulic Equipment.

A compact, lightweight, hydraulic-driven design for handling corrosive fluids with confidence in Agricultural and Industrial applications.

APPLICATIONS

Timber yard firefighting

Sugar cane field protection

Large bush fire suppression

Industrial water transfer

High-pressure cleaning tasks

Performance Data

Performance	Data
700 L/min @ 7.5 bar	(minimum)
Hydraulic Flow Rate	57 L/min @ 150 bar
Hydraulic Compatibility	Ideal for tractors with hydraulic oil flow rates of 60–100 L/min
Safe Operating Pressure	Do not exceed 15 bar to prevent hose damage

Need help choosing the right hydraulic pump?

Our Hydraulic specialists can help you select the best solutions for your application. Get expert advice and a fast, no obligation quote

Request a quote Chat to us now
